Robotic Case Packing with IRIS

case-packing-image

Robotic Case Packing designed for product flexibility, high changeover, and limited floor space.

Designed with a modular infeed system, the RPX line of case packers can accommodate a variety of products, including pouches, single-serve cups, personal care products, and more.

Download Brochure
Small Footprint
small-footprint

Due to our vertical corrugate feed system, our footprint is typically half the size or less of our competition.

One Touch Changeover

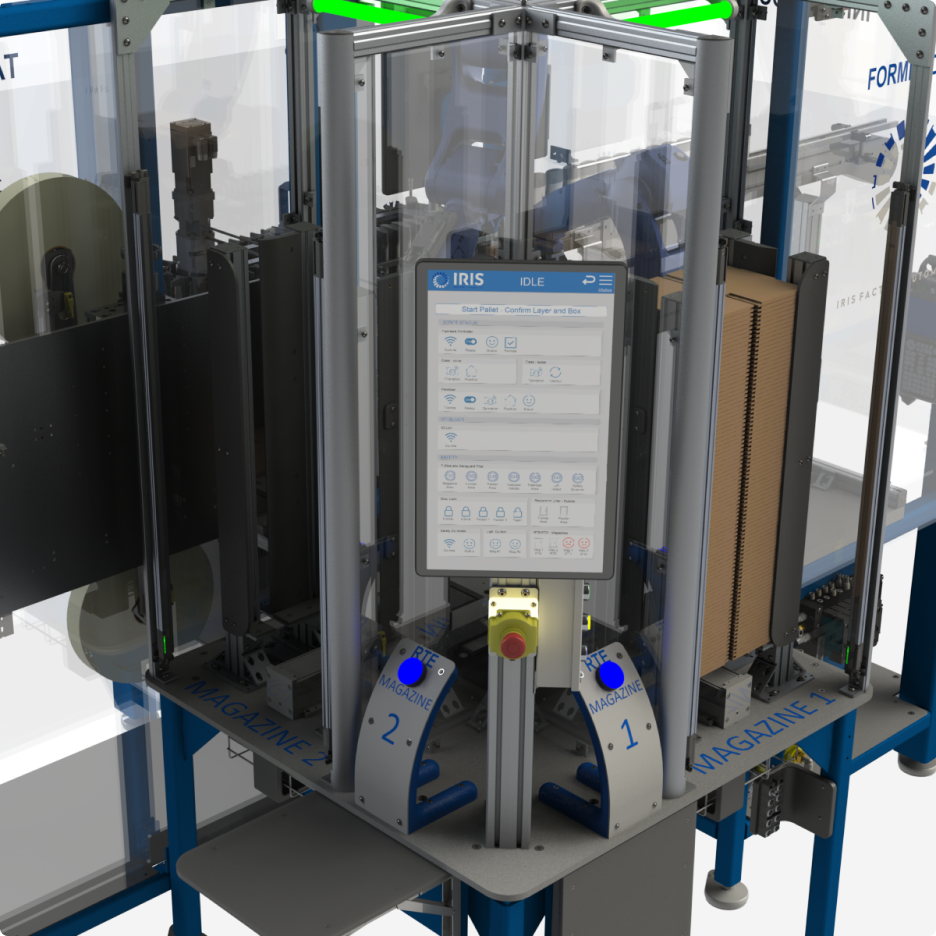

With the touch of a button, the servo-driven corrugate magazines auto adjust to transition to a different size case.

Infeed Flexibility
infeed-flexibility

With multiple infeed points, the RPX can be oriented in nearly any manner to suit your existing line infrastructure.

Product Flexibility
product-flexibility

Designed with a modular infeed system, the RPX line can accommodate a variety of products, including pouches, single-serve cups, personal care products, and more.

Pick/Pack Options
pick-pack-options

Leveraging the flexibility of robots, the RPX platform can adapt quickly to a multitude of applications simply by changing the end-of-arm tooling.

Case Variation
case-variation

Case sizes in a standard system can be as small as a 6”W x 6”L x 3”H and as large as 18”W x 18”L x 14”H.

Vertical Product Packing

With a focus on vertically orientated products, the RPX-V line is well suited to handle many items, including pouches, personal care products, and even small cartons.

DOWNLOAD BROCHURE

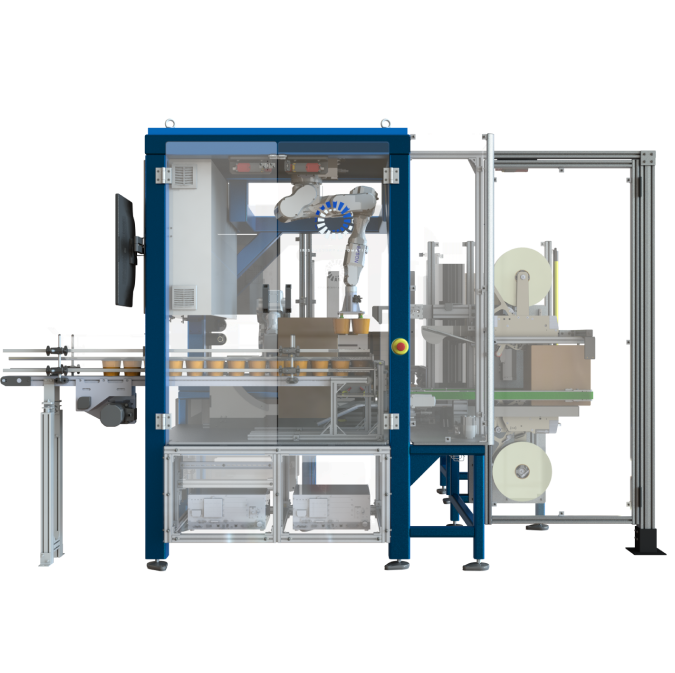

Cup Packing

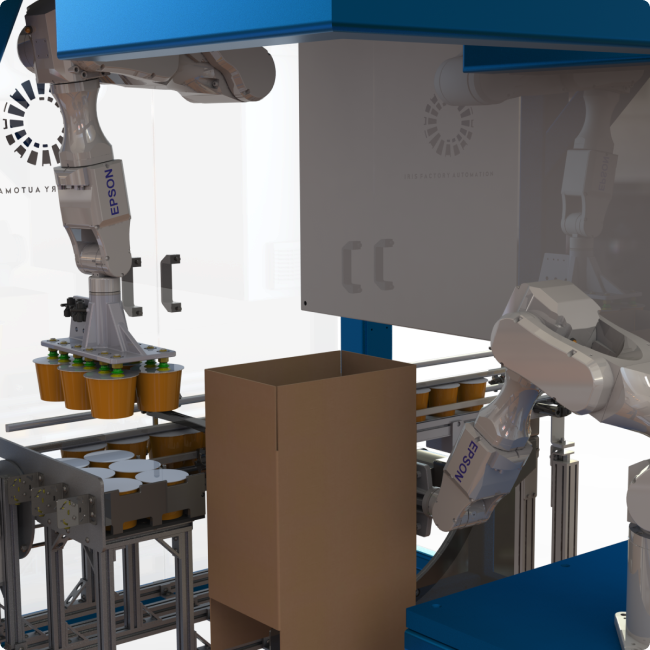

This platform excels at staging and packing single-serve cups, from mac & cheese to produce-based products to nearly any media residing in a cup format.

WATCH VIDEODOWNLOAD BROCHURE

Technical Specifications

Technical Specifications

POWER EQUIPMENT 230V / 480V
ELECTRICAL CONNECTION STYLE RIGID CONDUIT CONNECTION
AIR REQUIREMENT 80 PSI MINIMUM
AIR CONNECTION STYLE HARD PIPED
SYSTEM DIMENSIONS 10’ X 8’
MAXIMUM PAYLOAD 8KG INCLUDING EOAT
MAXIMUM PICK RATE 10 CASES / MINUTE

Key Features:

Can be integrated with any IRIS RPZ Palletizing system
Options up to 8kg industrial robots
Ability to create mix packs via multiple infeeds
Average rate of up to 10 cases / minute depending on pack out
Standalone footprint of less than 10’ x 8’
One-touch, servo-driven changeover
